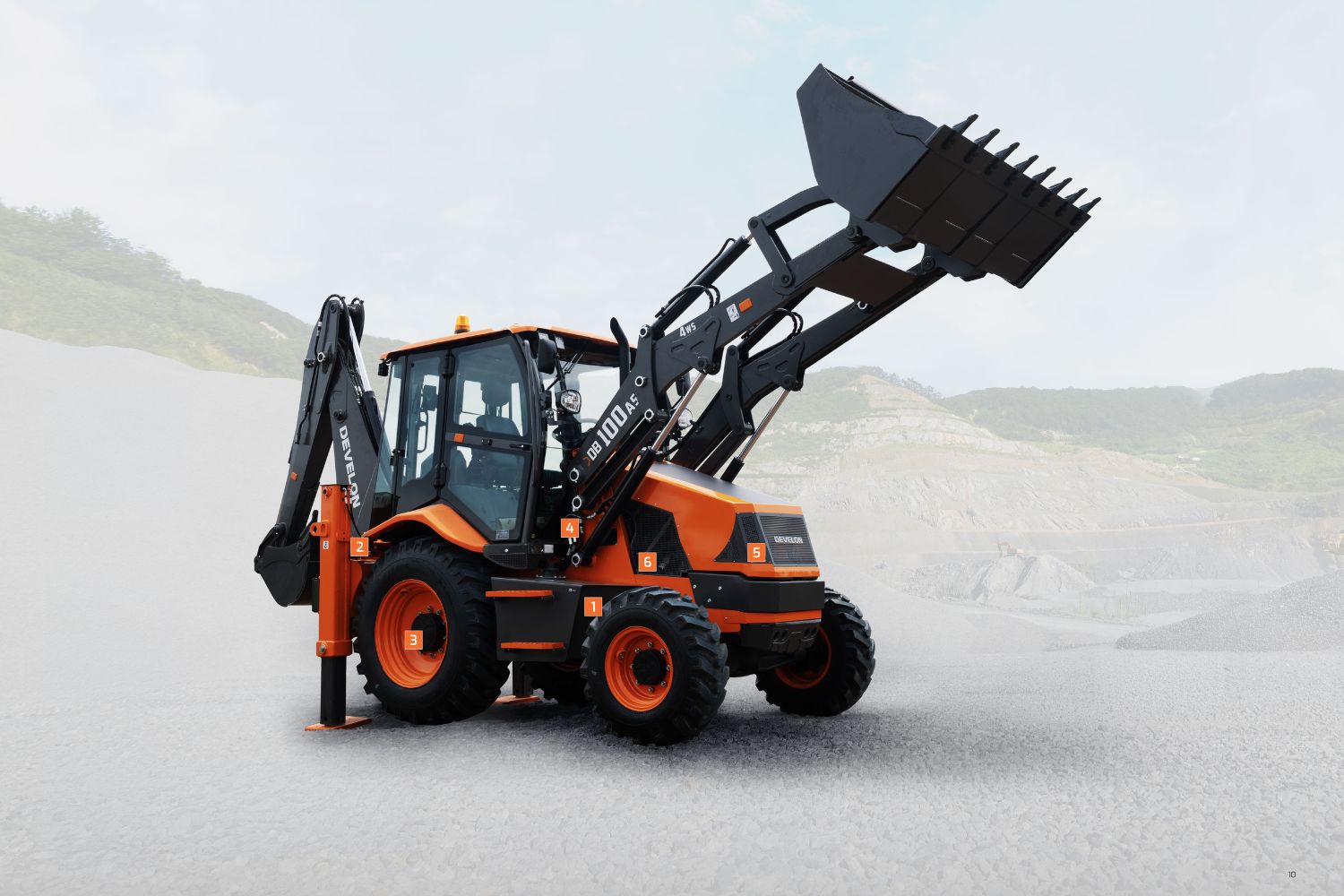

DISA Equipment will soon launch the new Develon DB100AS-2KM backhoe loader in Southern Africa. This new Develon equipment is built for high efficiency in construction, municipalities, agriculture and infrastructure.
The DB100 series joins a wide range of robust Develon earthmoving equipment. It is designed for strong performance, precise control, operator comfort and long service life.
Why the Develon TLB Suits Southern African Operators
DISA Equipment specialists believe the new Develon TLB suits owners who want one machine that balances three things: loader productivity, excavation precision and transport speed.
The DB100 series delivers higher breakout force, more traction and extended reach. This applies to both loader and backhoe functions.
Engine, Hydraulics and Drivetrain
A Kirloskar mechanical engine (EU Stage II, 96 HP) provides reliable power in tough conditions. The hydraulic system gives smooth, responsive control and strong breakout force across a wide range of applications.
Four-wheel drive is standard, with planetary front and rear gears for heavy-duty work. The wet disc service and parking brakes are oil-immersed. This limits contamination and extends service life.
Forward travel speeds reach 40 km/h, so operators can move safely and efficiently between sites. DB100AS-2KM machines come standard with a manual synchro shift transmission.
Digging Depth, Reach and Payload Specifications
- Backhoe working depth: up to 4,770 mm (standard side-shift), or 5,830 mm with the optional telescopic dipper
- Maximum digging height: 5,980 mm standard, or 6,890 mm with telescopic extension
- Loader dump height: 2,960 mm
- Hinge pin height: 3,610 mm
- Payload capacity: 2,000 kgf
Operator Cabin, Comfort and Safety
The cabin is designed for visibility and easy control. A one-piece curved windscreen and large side glazing give a clear view. The sloped bonnet improves sight to the loader cutting edge.
The ROPS/FOPS-certified cab includes an adjustable steering column, suspension seat and ergonomic controls. An electric switch engages the parking brake from inside the cab. Optional climate control provides heating, defrosting and air conditioning.
The boom gives clear visibility into the trench. This helps when digging around buried obstructions such as utility lines, sewer pipes and water mains. An integrated safety bar and locking pin on the bucket cylinder add operator safety.
Smooth Ride Control and Precision Features
The optional Smooth Ride Control system reduces loader bounce on uneven terrain. Adjustable Flow Control optimises travel power on the highway. Pilot controls and telescopic dipper options add precision and versatility when digging.
Easy Servicing and Maintenance
A tilt-up hood gives unobstructed access to the engine compartment. Greasing points are reachable from ground level. A visible hydraulic oil sight gauge allows quick inspection, and a single-layer radiator cooling system simplifies cleaning.
Backhoe Loader Attachments for Diverse Applications
A wide range of purpose-designed attachments adds versatility.
- Loader options: general purpose and multi-purpose buckets, fork variants up to 1,200 kg, log forks, sugarcane grabbers, biomass buckets and a 600-litre concrete mixer
- Backhoe options: trench and light-duty buckets, and a hydraulic rock breaker rated for oil flows of 60 to 90 litres per minute
Built for Local Demand
The DB100 launch meets local demand for a durable, high-capacity backhoe loader that handles many tasks in tough conditions. It offers greater digging depth, breakout force and travel efficiency, without unnecessary electronic complexity.
On-site testing in arduous environments highlighted the stability of the four-wheel steer configuration. It also showed the improved material retention that Smooth Ride Control provides during site travel. Ground-level service access is a key design feature.
More Develon Equipment and Everdigm Attachments from DISA Equipment
DISA Equipment’s Develon range also includes excavators, articulated dump trucks and wheel loaders. The company supplies and supports Everdigm attachments, including hydraulic breakers for excavators from 5 ton to 100 ton.
DISA Equipment’s advisory team helps customers select the right equipment. A broad branch and dealer network provides technical support, quality branded spare parts, reliable repair and maintenance, and Develon Operator Machine Orientation Services.
